Connex-Electronics.com
 Connex Connector Product Specification Sheet
Part Number272147
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Straight Jacks
Description:Straight Solder Jacks - Semi-Rigid Cable

Specifications
Electrical
Cable Group12   Cable Types: .250 Semi-Rigid
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolN/A

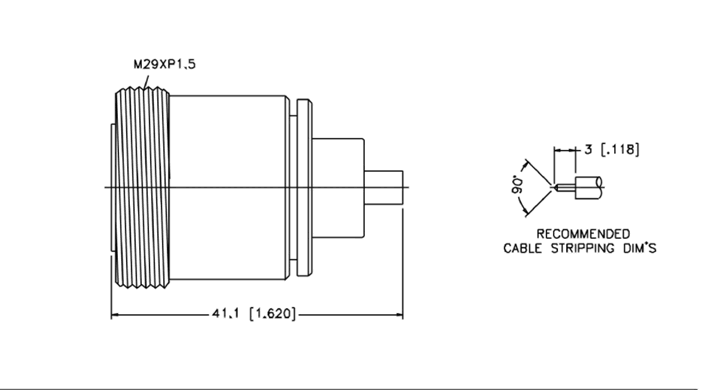

Schematic Drawing
Connex part number 272147 schematic
