 Connex Connector Product Specification Sheet
Part Number Add part number 272137 to your Quote. 272137
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Right Angle plugs
Description: Right Angle Clamp Plug - Super Flex Cable
Super Flex

Specifications
Electrical
Cable Group 1/2"
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

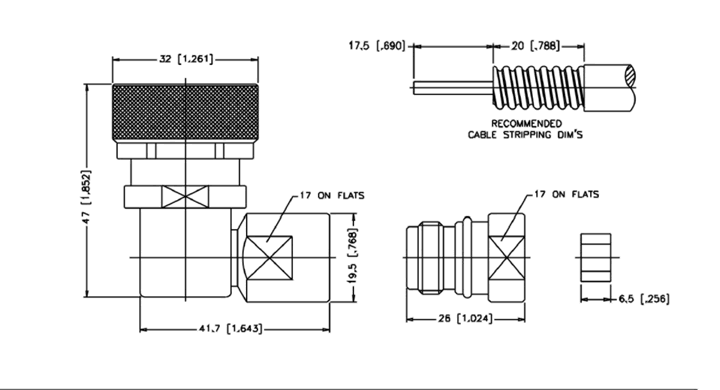

Schematic Drawing
Connex part number 272137 schematic
