 Connex Connector Product Specification Sheet
Part Number Add part number 272116 to your Quote. 272116
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Right Angle plugs
Description: Right Angle Crimp Plug - Flexible Cable

Specifications
Electrical
Cable Group 17    Cable Types: LMR600
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool .610 HEX

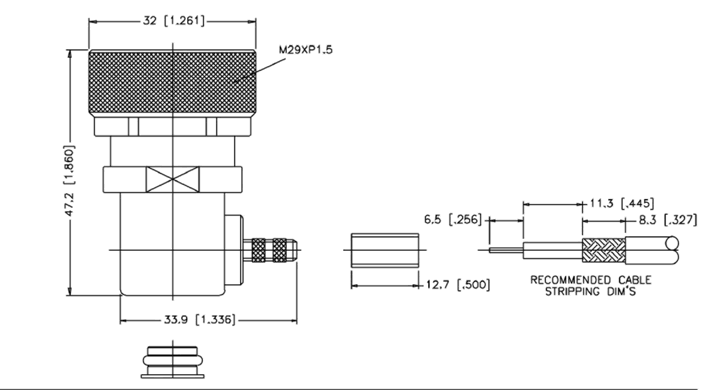

Schematic Drawing
Connex part number 272116 schematic
