Weco Series MTB


Interface Modules MTB

10 - 64 poles


Description

MTB interface modules are designed to facilitate the connection of flat ribbon cables to discrete wires. Standard models are equipped with 10-64 pole IDC connectors with ejectors according to DIN 41651. They are designed to mate with DIN 41651 female plugs equipped with strain relief clamps. When plugged, the ejectors lock the plug in place.

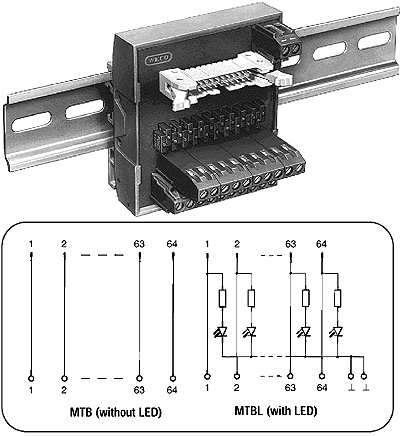

Type MTB is also available with two flat ribbon cable connectors (2 x 16, 2 x 20, and 2 x 26). Type MTBL, in addition employs one LED per pole to facilitate signal tracing.



Technical Data

MTB

Nominal rated voltage: 60 VAC
Nominal rated current: 1 A

Dimensions

Height:

connector: code P
mounting rail:
H-35: 65 mm / 2.56 in.
G-32: 70 mm / 2.76 in.
H-15: 64 mm / 2.52in.

connector: code S
mounting rail:
H-35: 46 mm / 1.81 in.
G-32: 51 mm / 2.01 in.
H-15: 45 mm / 1.77 in.

Length:
10, 14 poles: 47 mm / 1.85 in.
16, 20 poles: 69 mm / 2.72 in.
26, 2 x 16 poles : 92 mm / 3.63 in.
34, 40, 2 x 20 poles : 114 mm / 4.49 in.
50 poles: 137 mm / 5.40 in.
2 x 26 poles (MTB only): 159 mm / 6.26 in.
60, 64 poles: 182 mm / 7.17 in.

Width: 76 mm / 3.00 in.

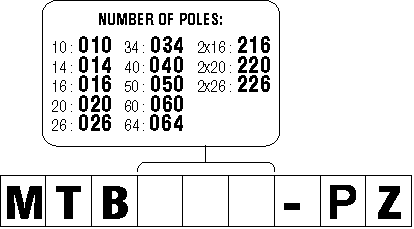

Ordering Information
