Semiconductor Switch Modules ( AC ) MHSA

Description

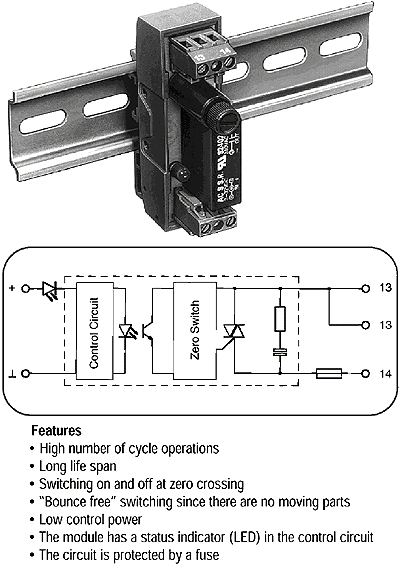

The switching capacity of this optically coupled semiconductor switch is 24-280 VAC at a maximum continuous current of 2 A. Due to the optical separation of control from output circuit, there is no galvanic link between control (processor, or computer) and output (power consumer such as motor). A triac is used to apply power to the load during zero cross over of the AC supply. This method keeps starting currents to a minimum, resulting in longer equipment life and less electrical noise.

Technical Data

Control circuit

Control voltage: 4...30 VDC
Operating value: <5 VDC
Release value: > 1 VDC
Control current: <30 mADC
Control circuit resistance: 1000 ž

Contact Circuit

Switching current: 2 Arms
Switching voltage: 240 Vrms
Switching voltage range: 24-280 Vrms
Maximum periodic peak reverse voltage: 600 Vp
Frequency range: 47...63 Hz
Maximum rated surge forward:
current, during one period
50Hz peak value permissible
only occasionally: 100 Ap
Minimum switching current: 50 mArms
(holding current)
Maximum reverse voltage: 4.5 mArms
(leakage current)
Maximum conducting state:
voltage (peak value) at
maximum switching current:1.6 Vp
Zero voltage: +30 V Vp
Critical rate of voltage
rise dv / dt: 200 V/µs
Critical rate of commutation
voltage rise: 5 V/µs
Critical rate of current rise
di / dt: 20 A/µs
I2t, 10ms: 50 A2s
Operate delay: 1/2 cycle max
Circuit fusing: 2 A
Operating temperature range:
-25°C to +60°C / -13°F to +140°F

Dimensions:

Height:
mounting rail:
H-35: 64 mm / 2.52 in.
G-32: 69 mm / 2.72 in.
H-15: 63 mm / 2.48 in.
Length: 24 mm / 0.95 in.
Width: 76 mm / 3.00 in.
