Weco Series MBC


Component Modules MBC


Description

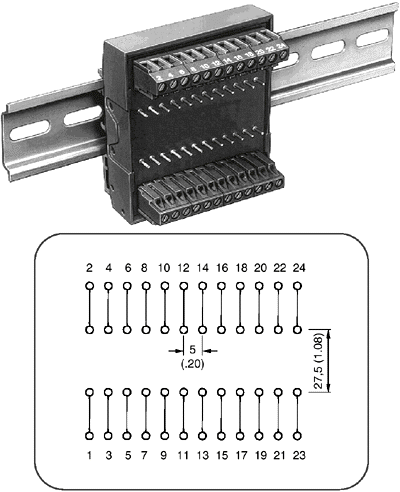

MBC modules offer the user a prepared circuit board, on which customer chosen components can be mounted. Versions are available with solder tabs or solder pins (LST 1.3 x 6.5 mm / 0.05 x 0.256 in.) , which are connected to the input and output connectors.

Technical Data

Center to center spacing: 5 mm / 0.197 in.
Nominal voltage: 250 V AC*
Nominal max. current: 5 A*
* Values depend on components used


Dimensions

Height:
mounting rail: H-35: 51 mm / 2.01 in.
G-32: 56 mm / 2.20 in.
H-15: 50 mm / 1.97 in.
Length:
MBC A08, B08: 47 mm / 1.85 in.
MBC A12, B12: 69 mm / 2.72 in.
Width: 76 mm / 3.00 in.

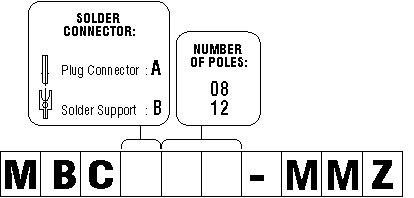

Ordering Information
