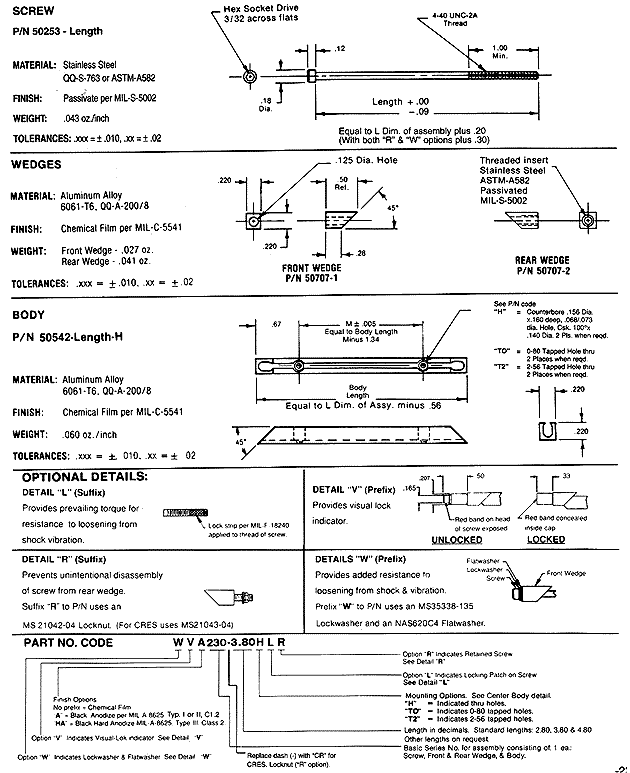

| Calmark offers the Series 230 "Card-Lok" Retainer for
cold plate-heat exchanger applications. A mid-width configuration, to meet PC
card retainer requirements between the Series 225 and 240.
FEATURES:
- Maximum
Reliability
Screw-actuated wedge action locks PC cards in place.
- Maximum Thermal
Transfer
Wedge-action design provides maximum contact between thermal paths on PC card
and the heat sink surface.
- High Resistance to
Shock & Vibration
Wedge-action design locks PC card in place to provide excellent resistance to
shock and vibration.
- Zero Insertion &
Extraction Forces
Screw-actuation provides zero insertion and extraction forces on PC card.
- Design
Flexibility
Special lengths, finishes or other design variations available on request.
|
