Series 125 & 126 Retainers


Calmark Series 125 & 126 Retainers

Calmark offers the Series 125 and 126 Card Retainer as the economical approach to protecting your PC cards in shock and vibration.

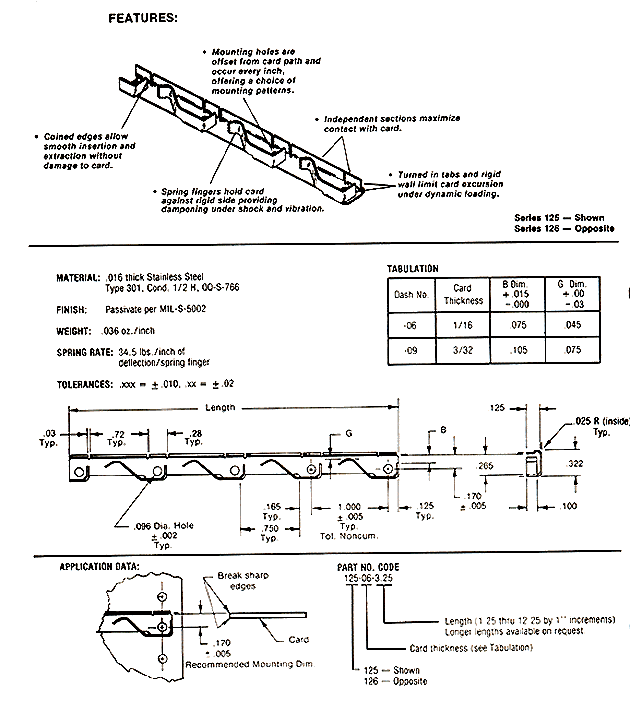

FEATURES:

  • Coined edges allow smooth insertion and extraction without damage to card.
  • Spring fingers hold card against rigid side providing dampening under shock and vibration.
  • Mounting holes are offset from card path and occur every inch, offering a choice of mounting patterns.
  • Independent sections maximize contact with card.
  • Turned in tabs and rigid wall limit card excursion under dynamic loading.
Calmark Series 125 & 126 Retainers
