Air Filtration RFI EMI Fan Filters

These assemblies are exclusive to Air Filtration Products. They consist of a finger guard, wire mesh media and retainer. Available in vacuum metalized injection molded ABS plastic or injection molded Latamid 66 H2 K/40™. Latamid is a heat stabilized, 40% carbon fiber with reinforced nylon 66 resins.

RFI / EMI Fan Filters

Vacuum Metalized		Latamid Carbon Based Filter

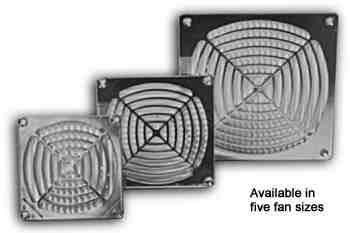

Injection molded ABS plastic with Vacuum Metalized Plating Color: "chrome" or silver appearance Corrugated aluminum 3030 screen wire or mini-mesh media Available in 5 fan sizes		Injection molded Latamid 66 H2 K/40™ Color: black matte finish Heat stabilized, 40% carbon fiber with reinforced nylon 66 resins Corrugated aluminum 3030 screen wire Available in 5 fan sizes

(Click on the Fan Filters to see an enlargement.)

Type	Fits Fan Size	H / W	H / C	T

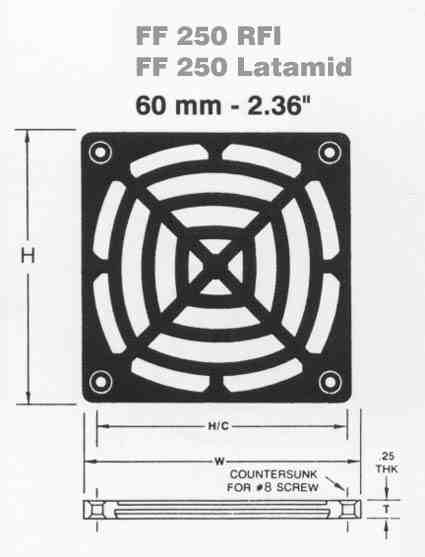

FF-250-RFI/EMI	60 mm	2.36” (60.0mm)	1.97” (50.0mm)	.25” (6.4mm)
FF-250-RF-LATAMID	60 mm	2.36” (60.0mm)	1.97” (50.0mm)	.25” (6.4mm)

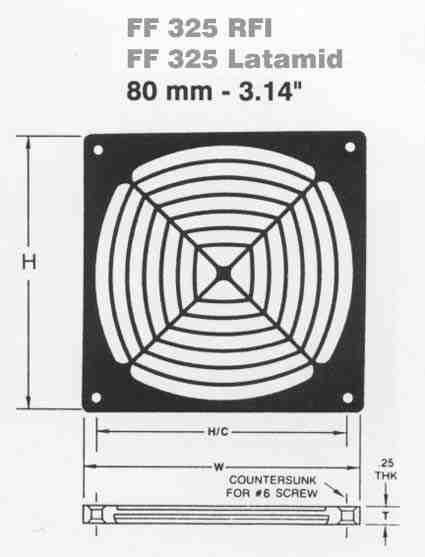

FF-325-RFI/EMI	80 mm	3.14” (80.0mm)	2.81” (71.4mm)	.25” (6.4mm)
FF-325-RF-LATAMID	80 mm	3.14” (80.0mm)	2.81” (71.4mm)	.25” (6.4mm)

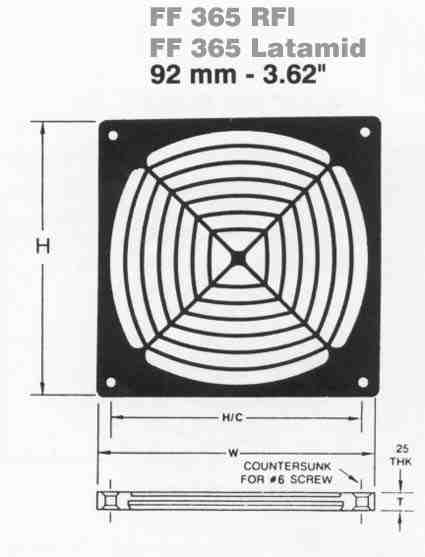

FF-365-RFI/EMI	92mm	3.62” (92.0mm)	3.25” (82.6mm)	.25” (6.4mm)
FF-365-RF-LATAMID	92mm	3.62” (92.0mm)	3.25” (82.6mm)	.25” (6.4mm)

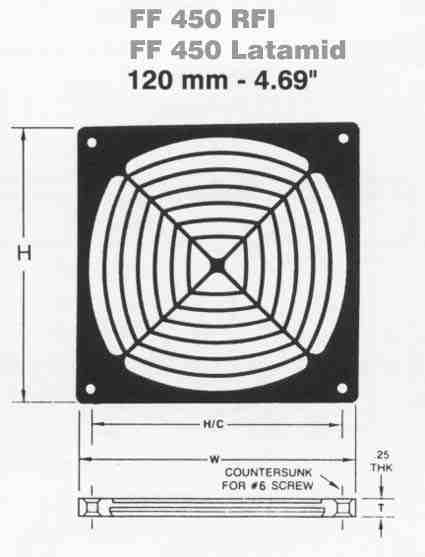

FF-450-RFI/EMI	120mm	4.69” (119.1mm)	4.13” (105.0mm)	.25” (6.4mm)
FF-450-RF-LATAMID	120mm	4.69” (119.1mm)	4.13” (105.0mm)	.25” (6.4mm)

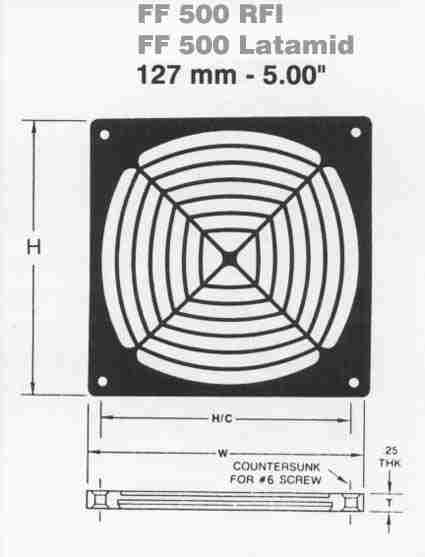

FF-500-RFI/EMI	127mm	5.00” (127.0mm)	4.46” (113.3mm)	.25” (6.4mm)
FF-500-RF-LATAMID	127mm	5.00” (127.0mm)	4.46” (113.3mm)	.25” (6.4mm)
