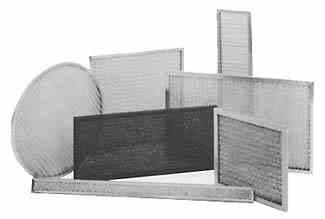

| Air Filtration Aluminum Panel Filters | |
| General Specifications | |
|
|
SW-SWX |
|||||||
SW and SWX filtration media is either flat or corrugated wire cloth. SW is made up of all woven aluminum wire. SWX is made up of face grids of expanded aluminum and an inner layer of woven aluminum wire. Both are encapsulated in a one piece aluminum frame secured by an aluminum blind rivet. |
|||||||
| Applications The SW and SWX have become an industry standard for durability and efficiency. This permanent washable filter offers relatively low resistance and high efficiencies at high velocities. The SW and SWX can be found in electronic cabinets, forced air heaters, electrostatic air cleaners and many more applications. This filter has been in use for more than 30 years and is still an excellent choice for a filter to remove large particles and stands up to cleaning year after year. |
|
||||||
Typical specifications
|
SW-SWX filtration media carries an Underwriters Laboratories 900 Class 1 listing. | ||||||
| Arrestance information available upon completion of tests. | |||||||
EXMET |
||||||||||
EXMET filtration media consists of layers of slit and expanded aluminum. Inner layers incorporate aluminum foil and grids of expanded aluminum which are corrugated together. Face grids are heavy expanded aluminum. Frame is miter cornered aluminum channel and secured by an aluminum blind rivet. |
||||||||||
| Application This type of panel pre-filter is particularly suitable in applications where frequent servicing and rough handling may occur. Low resistance and heavy duty construction make the EXMET an excellent roughing filter where ease of cleaning is necessary. Frequent washings do not affect the media. EXMET filters are commonly used in air handling units and ahead of bag filter banks where extended media filters offer too much pressure drop. Typical specifications |
|
|||||||||
FOILX |
|||||||||
FOILX air filters are composed of aluminum foil that has been slit and expanded. The filtration media for this filter consists of either eight layers of flat expanded foil or six layers of corrugated expanded foil, depending on frame thickness. The face grids are expanded aluminum. Frame is a miter cornered aluminum channel secured by an aluminum blind rivet. |
|||||||||
| Applications The FOILX is excellent as a roughing filter where ease of cleaning is necessary. This filter is commonly used in electronic equipment, package air conditioning units, home heating and air conditioning central units and kitchen range hoods. |
FOILX filtration media carries an Underwriters Laboratories 900 Class 1 listing. |
||||||||
Typical specifications
|
 |
||||||||
FOAMX |
||||
FOAMX filtration media is fully reticulated polyester-polyurethane or polyether urethane filter foam. The face grids are expanded aluminum. Enclosing the foam and grids is an aluminum miter cornered frame with an aluminum blind rivet. |
||||
| Applications The FOAMX has a wide variety of uses because of the porosities available in the foam. The foam can be from 10 to 100 pores per linear inch (PPI). This dramatically affects the air flow. As the PPI increases, so does the air resistance. This type of filter is typically used in engine breathers, oil mist eliminators, muffin fan filters, and on electronic cabinets. The filter is not only effective but is also aesthetically pleasing with the black foam and the aluminum frame. These filters can be mounted on the front of many electronic cabinets as an appealing visual accent in addition to their functionality. Typical specifications |
|
|||
TECHX |
|
TECHX filtration media is a mixture of polypropylene and modacrylic fibers. The exchange of electric charge between these dissimilar materials produces stable electric charges. This creates a greatly improved filtration media to trap fine particles. This media, corrugated together with expanded metal, makes up the inner layers of this filter. The face grids are made of heavy expanded aluminum held by a one piece mitered corner aluminum frame held by an aluminum blind rivet. |
|
| Applications The TECHX filter exhibits excellent efficiencies and low resistance. This media has been used for respirators, room air purifiers and in the automotive industry for recirculating filters for cars. This media is capable of catching particles as small as cigarette smoke. This is a very significant advancement for indoor air quality. If you have a need for high efficiency and low resistance, the TECHX is the answer. TECHX filtration media carries an Underwriters Laboratories 900 Class 2 listing. Typical
specifications |
Efficiency
|
POLYX |
||||||||||
POLYX air filters are made of progressively bonded uniform non-woven polyester filtration media, encapsulated by expanded aluminum face grids in an aluminum miter cornered frame secured by an aluminum blind rivet. The polyester is manufactured using advanced technology air laid equipment. This process produces a media of high quality, uniformity, and excellent filtration performance. |
||||||||||
| Application POLYX filters are frequently used in electronic cabinets where blowers are drawing air from the floor level or cabinets which are located in an office environment. Many are purchased to replace the foil media type filters electronic cabinets are fitted with by the manufacturers. This easily cleaned filter is also resistant to most inorganic alkalis, salts, and acids as well as commonly used organic chemicals. These filters are also used in air handling units and home forced air furnaces. Examples of this filter’s uses are not limited to those listed here. Typical specifications |
|
|||||||||
CARBX |
|
CARBX filters have filtration media which is composed of two parts: a coated non-woven polyester media which has an inherent captive capillary effect for particles, and an activated carbon surface area exposure for maximum adsorption efficiency. The media is encapsulated by expanded aluminum face grids. The filtration media pad is framed with an aluminum miter cornered channel secured by an aluminum blind rivet. |
|
| Application The CARBX is designed to meet the challenge of improving indoor air quality. It can be used anywhere fumes and odors are perceived as a nuisance. These filters are typically used in motels, hotels, airports, doctors’ offices, office buildings, homes, restaurants, and many other facilities. Typical specifications |
CARBX filtration media
carries an Underwriters Laboratories 900 Class 2 listing
|
|
|
